MD-HMI Keypad and 4x20 LCD Display [MD-HMI]  US$143.00 - US$169.00

Description

MD-HMI Keypad and 4x20 LCD Display

MD-HMI
Human Machine Interface

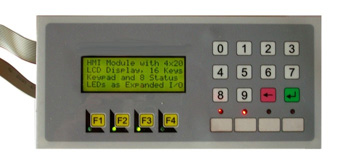

(Click picture for enlarged photo)

MD-HMI

This product comprises one 4 lines x 20 characters backlit LCD display; a 16 keys keypad and 8 LEDs. This module is plugged into the LCD port and the expansion port of the PLC. It does not use up any of the PLC's I/O. The keys and the LEDs appear as expanded I/Os to the CPU.

Numeric keypad data entry is much easier. Professional looking front bezel.

Note : Works only on MD (not MX) and F-series models.



  • Download Installation Guide: inst-HMI.pdf

  • Download TRiLOGI programs for use with the MD-HMI: HMI.zip
